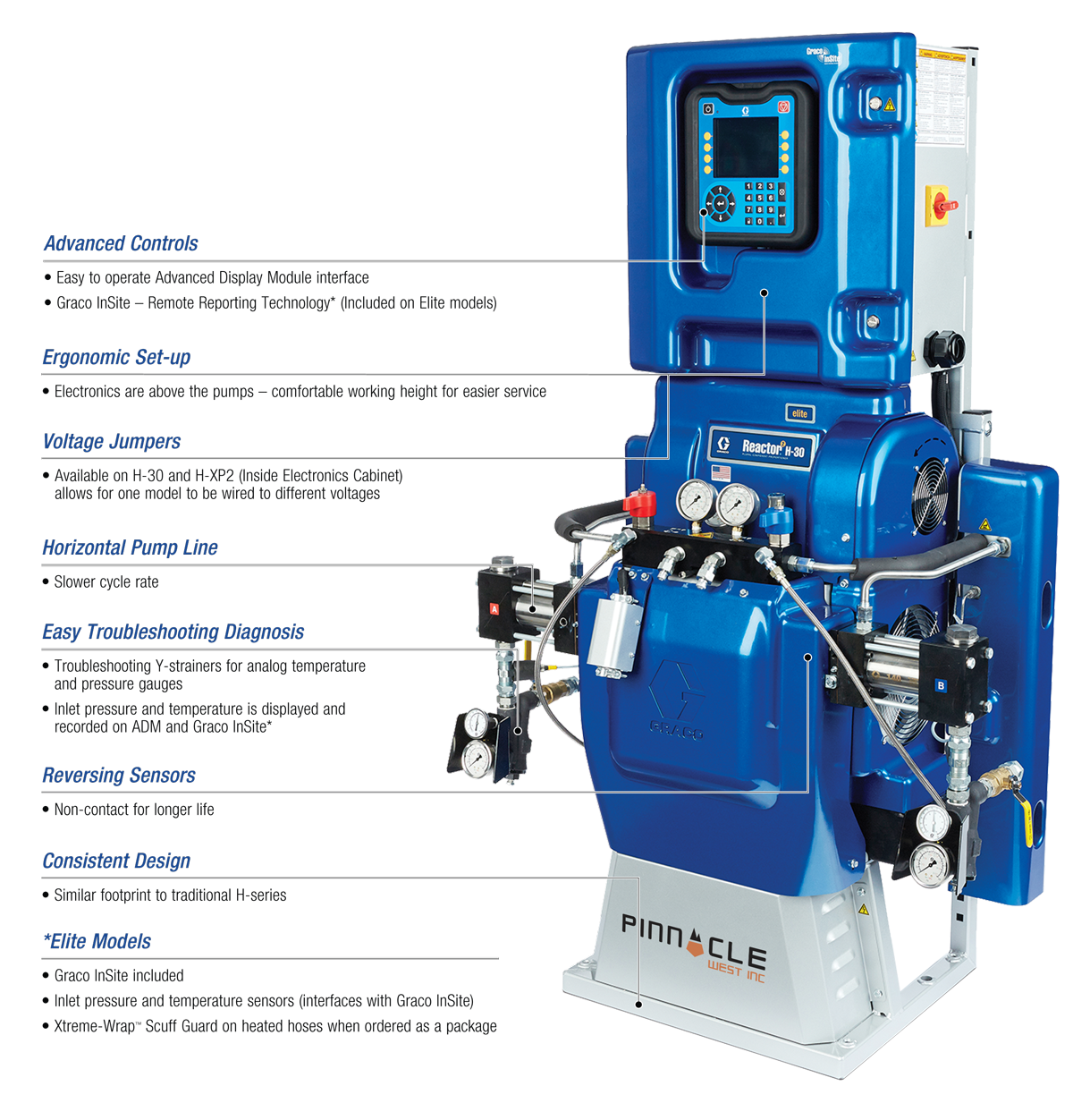

From residential foam insulation projects to high-volume commercial roofing jobs, Graco’s Reactor 2 H-30 Hydraulic Foam Proportioners provide the reliability and power to get the job done.

Powerful hybrid heaters maintain set points, even when spraying at maximum flow rates

Easy to operate Advanced Display Module interface

Graco InSite – Remote Reporting Technology (Included on Elite models)

Horizontal positive displacement pumps provide smoother changeover

Quick Specs

2000 psi

Max Pressure

310 ft (94 m)

Max Hose Length

190°F (88°C)

Max Fluid Temp

10.2 or 15.3

kW Heaters

28 lb (12 kg)

Max Output/min

Hydraulic

Proportioner

Features

Detailed Specs

Maximum Fluid Working Pressure
2000 psi (138 bar, 13.8 MPa)

Minimum Fluid Working Pressure
600 psi (41 bar, 4.1 MPa)

Primary Heater Power
10.2 or 15.3 kW

Maximum Fluid Temperature
190° F (88° C)

Maximum Output
28 lb (12.3 kg)/min

Output Per Cycle (A and B)
0.074 Gallon (0.280 Liter)

Fluid : Oil Pressure Ratio
1.64 : 1

Amperage Requirement 10.2 kW
230V (Single Phase) 79 Amps
230V (Three Phase) 46 Amps
400V (Three Phase) 35 Amps

Amperage Requirement 15.3 kW
230V (Single Phase) 100 Amps
230V (Three Phase) 59 Amps
400V (Three Phase) 35 Amps

Line Voltage Options
230V units: 195–264 Vac, 50/60 Hz
400V units: 338–457 Vac, 50/60 Hz

Weight
10 kW: 530 lb (240 kg)
15 kW: 556 lb (252 kg)

Hydraulic Reservoir Capacity
3.5 Gallon (13.25 Liter)

Fluid Inlets
3/4 npt(f), 300 psi maximum

Fluid Outlets
Component A (ISO)
#8 1/2 in. JIC, with #5 5/16 in. JIC adapter
Component B (RES)
#10 5/8 in. JIC, with #6 3/8 in. JIC adapter

Fluid Circulation Ports
1/4 npsm(m) 250 psi

Sound Power, per ISO 9614–2
90.2 dB(A)

Sound Pressure, 1 m From Equipment
82.6 dB(A)
