Reactor 2 E-XP2i

Reactor 2 E-XP2i

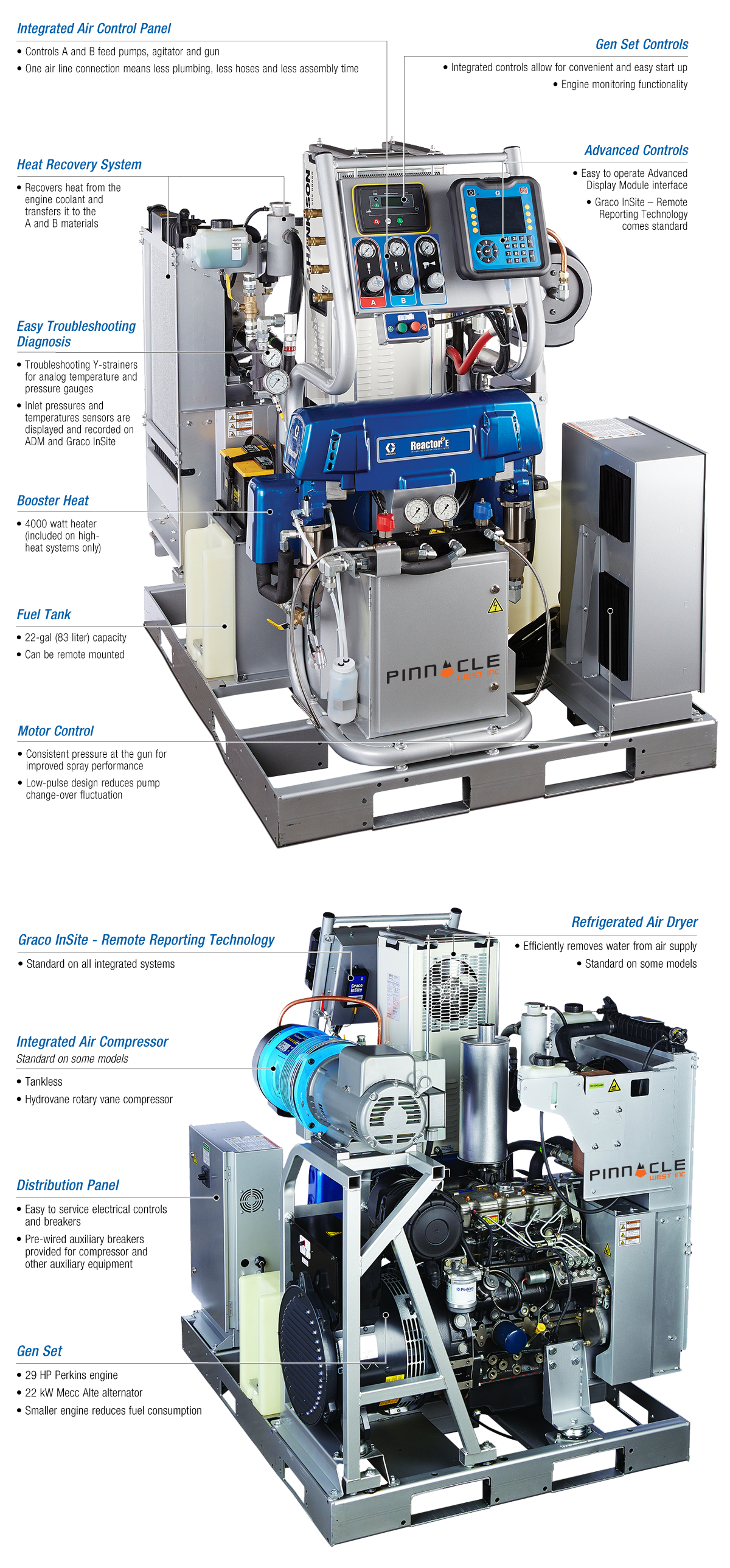

Ready for your jobsite or spray rig – right out of the box. The E-XP2i Integrated Reactor proportioning system combines an electric Reactor and a diesel generator into one package.

Improves productivity with advanced features and easy to use controls

Easy to operate Advanced Display Module interface

Graco InSite – Remote Reporting Technology (Included on all Integrated models)

Fast material heating gets you up and running quicker

Quick Specs

3500 psi

Max Pressure

310 ft (94 m)

Max Hose Length

180°F (82°C)

Max Fluid Temp

4.0

kW Heaters

2.0 G (7.6 L)

Max Output/min

Integrated

Proportioner

Features

Detailed Specs

Maximum Fluid Working Pressure
3500 psi (240 bar, 24.0 MPa)

Minimum Fluid Working Pressure
N/A

Primary Heater Power
4.0 kW

Maximum Fluid Temperature
180° F (82° C)

Maximum Output
2 gal (7.6 L)/min

Output Per Cycle (A and B)
0.0203 Gallon (0.0768 Liter)

Without Compressor
Aux. power available: 35A at 240V

With Compressor
Aux. power available: 5A at 240V

Gen-Set
Engine: Perkins 404-22G, 2.2 L, 29 HP
Generator: Mecc Alte 22 kW, 240V, 1-ph

Weight
1800 lb (793.7 kg) – without compressor
2200 lb (998 kg) – with compressor

Fluid Inlets
3/4 npt(f), 300 psi maximum

Fluid Outlets
Component A (ISO)
#8 1/2 in. JIC, with #5 5/16 in. JIC adapter
Component B (RES)
#10 5/8 in. JIC, with #6 3/8 in. JIC adapter

Fluid Circulation Ports
1/4 npsm(m) 250 psi

Sound Power, per ISO 9614–2
91.0 dB(A)

Parts and Supplies

Our online store has a large selection of spray equipment, parts and supplies ready to ship.

Adobe Acrobat Reader is required to view the above PDF files. This is a free program available from the Adobe web site. Follow the download directions on the Adobe web site to get your copy of Adobe Acrobat Reader.

Spray Rigs

The Graco Reactor 2 E-XP2i is also available in the following turn-key spray rigs. We build a full line of spray rig configurations in addition to our ability to provide a limitless set of customization’s. Each of our spray rigs are a true turn-key, sustained, and custom tailored solution for your application.

BULLDOGi Rig

Bulldog Spray Rig

BOXERi Rig

Boxer Spray Rig
